SureFlow

Description

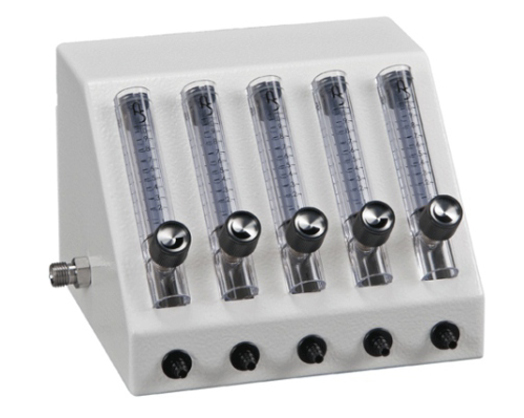

MULTI-PATIENT OXYGEN FLOW STATION

• Provides oxygen for up to 5 patiets per unit, all from a single O source 2
• For use with pediatrics to adults
• Can be connected with 2 or more units to accommodate more users
• Configured with 5 low flow flow meters
• Can be wall-mounted or placed on a tabletop/desktop
• Ideal for use with the New Life Intensity 10-series unit or any up-to-50 psig (345 kPa) O source 2
• Can be customer-configured with any combinaation of flow ters

Specificaations

• Dimensions: 5.8” high x 9.7” wide x 7.2” deep (14.7 cm x 24.6 cm x 18.3 cm deep)
• Flow Rates: Low flow flowmeters can be used from 1/10 LPM to 1 LPM with . 1 LPM increments with back lines for proper viewing angle.
• Flowmeter Accuracy: 0-1 LPM flowmeter ± 3% of full scale; 0-2 LPM flowmeter ± 5% of full scale
• Inlet Pressure: 7-50 psig (48-345 kPa)
• Operational emperature Range: 40˚ to 140˚F (5˚ to 40˚C). (Operating unit outside of this ange can affect performance.)
• Storage Temperature Range: 30°F to 140°F (-1°C to 60°C)
• Weight: 3.8 lbs (1.7 kg)
