Pricision UK ltd EN 13348 DEGREASED MEDICAL COPPER TUBE
Description
CPX copper tube is designed for use in Medical Gas Pipeline System (MGPS) installations and incorporates the specialist requirement of the MGPS industry to include cleanliness, packaging and usability required to attain the levels of quality as stated particularly in HTM 02-01.
Specific Benefits Include:
- Each pipe is cleaned to have a maximum carbon level 0.20mg/dm².

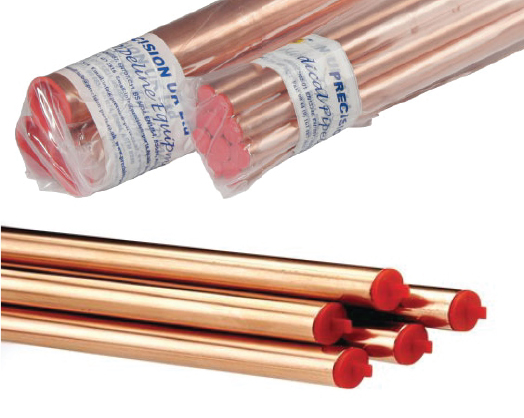

- Each pipe is individually end capped and bundled in sealed polythene bags to maintain cleanliness.
- Chemical composition CU.DHP to ISO 1190-1/CW024A to EN1412.
- All copper tube is manufactured under strict quality control procedures to ISO 9001: 2008 and CE marked under the Medical Device Directive 93/42/EEC (CE0086).
- Batch numbering for traceability is included on all pipework.
- Labelling on the copper tube will contain the following details: Date, Code of Manufacture, EN 13348, Tube Size, Manufacturer, Temper, British Standard Institute BSI Kitemarked, (CE0086).
SIZE RANGE
| Part no. | Diameter mm | Thickness mm | Length mtr | Tubes Per Bundle | Max Working pressure Bar |
|---|---|---|---|---|---|
| 10CP | 10 | 0.6 | 6 | 10 | 77 |
| 12CP | 12 | 0.6 | 6 | 10 | 63 |
| 15CP | 15 | 0.7 | 6 | 10 | 58 |
| 22CP | 22 | 0.9 | 6 | 10 | 51 |
| 28CP | 28 | 0.9 | 6 | 5 | 40 |
| 35CP | 35 | 1.2 | 6 | 1 | 42 |
| 42CP | 42 | 1.2 | 6 | 1 | 35 |
| 54CP | 54 | 1.2 | 6 | 1 | 27 |
| 67CP | 67 | 1.2 | 6 | 1 | 26 |
| 76CP | 76 | 1.5 | 6 | 1 | 29 |
| 108CP | 108 | 1.5 | 6 | 1 | 16 |
